Aluminum

Smart farm is the future of mankind.

AluminumPallet

Light and durable Eco-friendly aluminum pallet

The characteristics of the pallet

Raw material (Aluminum features)

Eco-friendly - Recycle (100%) possible, safe from mold (bacteria), non-toxic, used in the food (pharmaceutical) industry

Durability - No deformation/damage in the extreme environment (in the freezer). Incombustible material minimizes the damage in case of fire. Maintains the cleanliness by disinfection (washing)

Lightweight - 40% weight compared to steel. Reduced transportation cost and improved work efficiency by reducing weight

Design (realization of customer satisfaction through innovative design)

15% lighter weight compared to the same size of other companies through the development of a patented technology design

Reflecting the new technology design through rich experience: Corner curved finish, non-slip hinge attachment, custom design available

Product development that transforms innovative thinking: Expected to reduce cost and improve logistics management due to the pole-/rack-type pallet design

Complete development of various optional features: Various optional features have been developed

Realizes the pallet production with 100% satisfaction according to the use environment, work space, and load size

Production (building an integrated one-stop production line)

Realizes the customer satisfaction by operating a single factory for aluminum extrusion production, cutting, processing, and assembly processes

Realizes the increased productivity and reduced sales cost by operating dedicated facilities

Characteristics of pallet material

Classification Aluminum Wood Plastic
Weight 10~18 KG
Customization possible at the request of the customer		 More than 20Kg
Strength Uniform Increase in strength in high humidity Risk of breakage at low temperatures
Fire hazard No risk of loss 100% loss Generation of toxic gas
Safety Design for safety is possible Danger of nails and thorns Difficult to work due to weight
Clean Always clean
Maintainable		 Occurrence of moss and fungus Occurrence of lint
Environment Recyclable Incineration (Pest) Generation of microplastics

Characteristics of the general type

Assembly method 100% of aluminum can be recycled and repaired by manufacturing (No welding) (Increases the user residual value)

The curved surface of the four corners prevents injury to the operator and prevents damage from bumping the product during movement.

Patented technology design provides superior loading compared to the product weight

Additional selection of various functions available: Bando ring, pole (pillar)/rack (multi-stage loading) function can be added

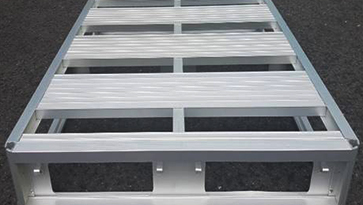

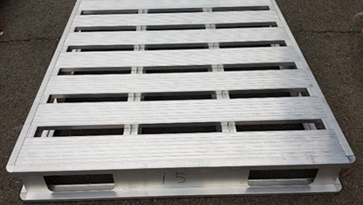

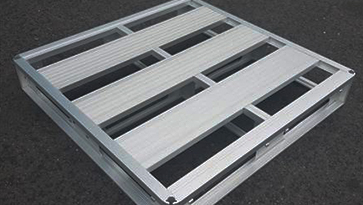

General-type product

Characteristics of general-type material

General Type Size(mm) Weight(kg) Payload
Width(W1) Width(W2) Height(H) Static Load Dynamic Load
GSP-N 1,100 1,100 135 14.5 5t 1.5t
1,100 1,200 135 13.2
1,000 1,500 135 15.3
1,500 1,500 135 20.1

Sites of use

Sites that require customized sizes (5cm increment)

Production- and logistics-related companies in hygiene products Factory automation operator

  • Peninsula ring

  • Surface treatment

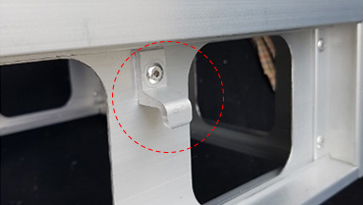

Characteristics of hinge type

Strengthens the anti-slip function of the load: Primary prevention of the top plate of pallet, double sliding prevention by attaching hinges on the sides of 4 sides

Convenience and workability are improved by the role of a guide on the hinge when the worker loads the product.

Hinge-type products

  • Occurrence of deviation of general pallet loading

  • Anti-slip

  • Inner guide role

  • Use of the hinge (protrusion)

  • When the hinge is not used (concealed) in multiple stages

Characteristics of hinge-type materials

General Type Size(mm) Weight(kg) Payload
Width(W1) Width(W2) Height(H) Static Load Dynamic Load
GSP-H 1,100 1,100 135 15.4 5t 1.5t
1,100 1,200 135 14.6
1,000 1,500 135 16.7
1,500 1,500 135 21.5

Sites of use

Sites requiring anti-slip between pallet and product (Freezer warehouse)

When it is necessary to prevent tilt between movements, when product loading guide is required

Characteristics of pole type

Additional poles (four-sided posts) are added to prevent the product from being pulled out during transport: Mixed use of general/hinge-type pallet (detachable)

Developed for the purpose of preventing contamination of loads (dust) and improving the packaging and wrapping process

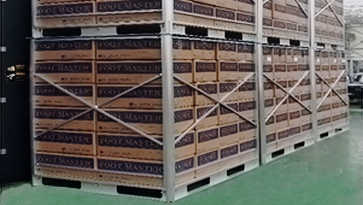

Pole-type products

  • Attaching a horizontal guide

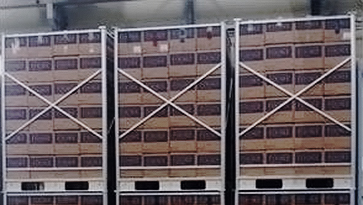

  • Attaching an x-shaped guide

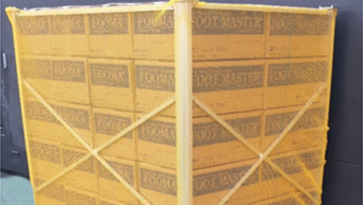

  • Anti-pollution pallet

  • Pulling occurs in exported products

  • Pole insertion space on four corners

  • Pole insertion (medium)

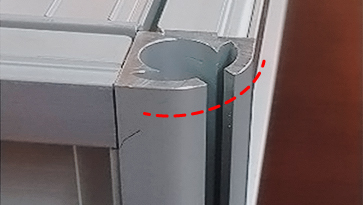

  • Curved surface finish

Characteristics of the pole-type materials

Pole Type Size(mm) Weight(kg) Payload
Width(W1) Width(W2) Height(H) Static Load Dynamic Load
GSP-P 1,100 1,100 1.5M
Adjustable		 20.2 5t 1.5t
1,100 1,200 19.5
1,000 1,500 21.4
1,500 1,500 26.7

Sites of use

Logistics and transport sites that require integrated fixation without gaps between pallets and loaded goods

Sites or exporters that need to prevent pulling during transportation and to protect products

Manufacturers that need improvement in their packaging and wrapping processes

Companies related to production and logistics related to storage and transportation of products for the purpose of prevent contamination such as semiconductors (clean rooms), food and beverages, pharmaceuticals, etc.

Characteristics of rack type

Completion of the high loading weight test compared to the same weight (size) by adopting multi-stage loading smart design method

Solving the problem of product loading and movement by using specially made casters (maximization of space utilization)

100% solution to the loss problem when moving and recovering products by improving the post (pole) storage method

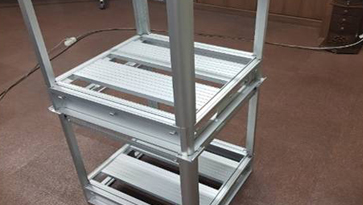

Rack-type products

  • Post (pole) in use

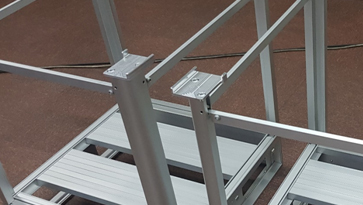

  • Stacking rack posts

Characteristics of rack-type materials

Rack Type Size(mm) Weight(kg) Payload
Width(W1) Width(W2) Height(H) Static Load Dynamic Load
GSP-R 1,100 1,100 1.5M
Adjustable		 25.3 5t 1.5t
1,100 1,200 24.6
1,000 1,500 27.1
1,500 1,500 32.2

Sites of use

Sites where it is difficult to install pallet racks due to insufficient loading space

A manufacturer whose purpose is to reduce the burden of pallet inventory by common use of logistics moving pallets and multi-level pallets

Companies that need to use pallets for common use of rack pallets, pole pallets, and rolltainers such as distribution warehouses and large marts
